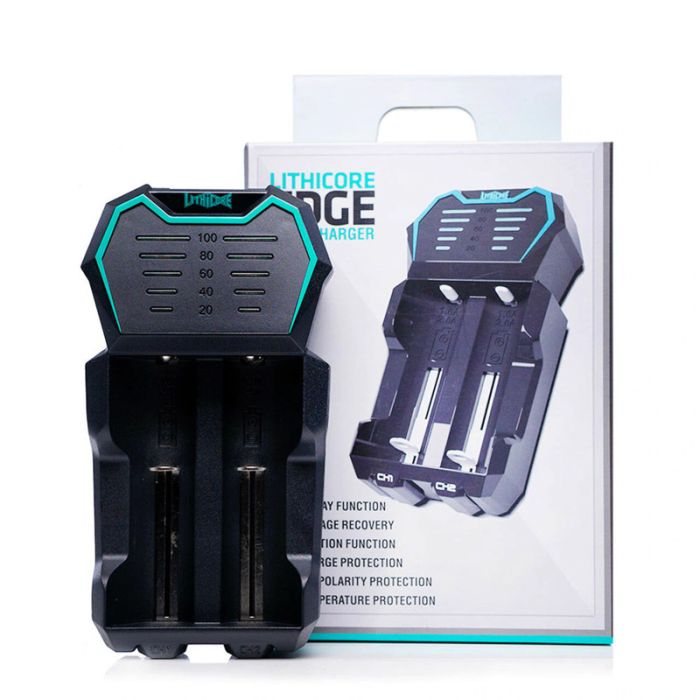

Lithicore Edge 2 Bay Charger

LITHICORE EDGE 2 CHARGER is used for charging all kind of lithium batteries such as10440, 14500, 14650, 16340, 16650, 17650, 17670, 18350, 18490, 18500, 18650, 22650, 20700, 21700, 26500, 26650 Cylinder AA/AAA NiMH batteries and Nickel-Cadmium batteries.

Specifications:

• Input: AC 100-240V 50/60Hz
• Output: 4.2V/2A x 1/2A  x 2 4.2V/1A x 3/1A x 4

Features:

• 2.0A constant current charging: When one or two batteries are placed in any slots the charging current is 2A.
• Input standby current: <40m A/100V-230V AC 50HZ/60HZ
• Cut-off voltage for charging: 4.20 ± 0.05V
• 1.0A constant current charging: When three or four batteries are placed in the slots the charging current is automatically set to 1A.
• The quiescent current: within 100uA
• Cut-off current for constant voltage charging: <200mA
• Activation current (voltage <2.0V): 100mA-200mA
